Cold Stores Jelkovec








Banana Ripening Rooms
5 x 1152 PACKAGES WITH COLD STORE

  • Building dimensions: 26 m x 23 m = 598 m², 6 and 4 m high

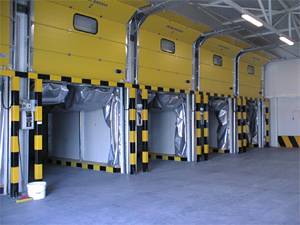

  • Five modern, computerized banana ripening rooms, 14.8 x 3.4 x 3.6 m in dimension each, including all necessary equipment (Holland technology of VDH Products, BG-Door), each with a capacity of 1,056/1,1152 cartons of bananas (22/24 pallets) with appertaining cooled anteroom 17.9 x 7.8 x 5.0 m in dimension

  • One cold store for bananas, 13.7 x 8.1 x 3.5 m in dimension, with the appertaining cooled anteroom sized 8.3 x 4.4 x 5.0 m

  • Engine-room with a refrigerating unit for indirect cooling of above-mentioned rooms

  • Offices equipped with a computer control system and toilet facilities with an anteroom.

  • Electric forklift truck CTC - planet PL 313, with 48V/60A automatic loader and CE certificates, loading capacity of 1,300 kg and lifting height of 3,200 mm.

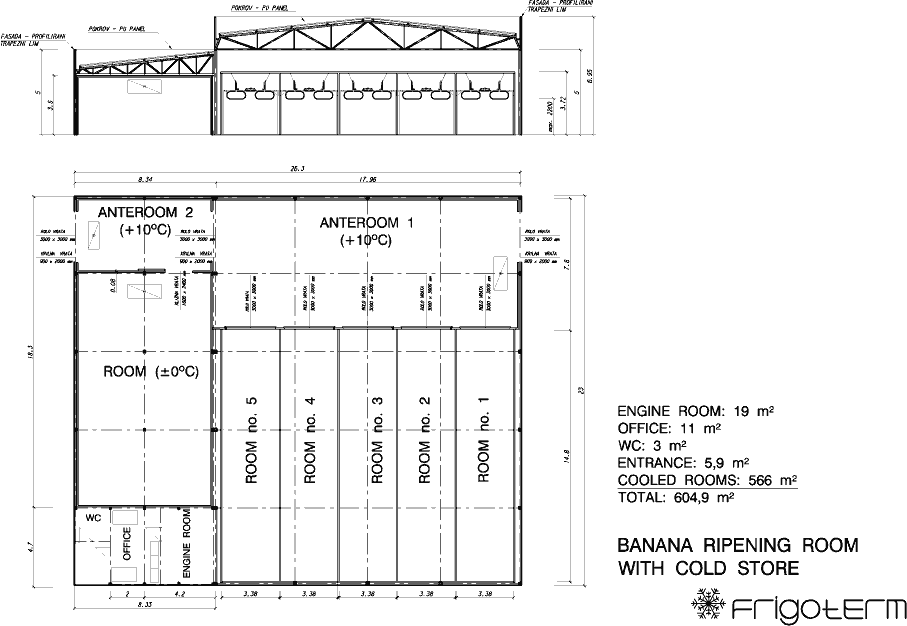

Ground Plan

(Click on the image to see larger picture)
